Double Pipe to Ball Valve Connector

Self Photos / Files - 99

Self Photos / Files - New Project - 2024-09-02T145826.468

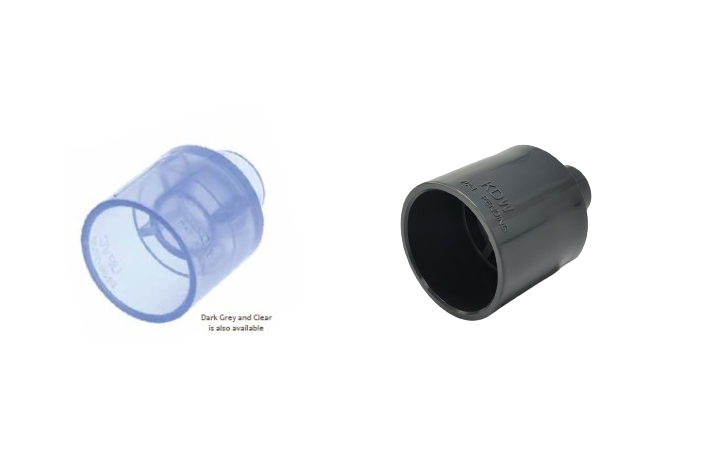

Model     Grey/Clear

MaterIal:   PVC-U, Polyvinyl Chloride Unplasticised

Colour:    Grey or Clear - G/C

Dimension: see below

PN:        See below

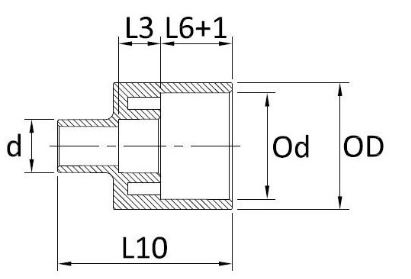

Technical Data

Code

Inner / Outer Pipe PN

d

(mm)

Od

(mm)

OD

(mm)

L3

(mm)

L6

(mm)

L10

(mm)

DVC 020 040 048 - G/C 16 20 40 48 16 26 63
DVC 025 050 058- G/C 16 25 50 58 19 32 75
DVC 032 063 073- G/C 16 32 63 73 22 38 87
