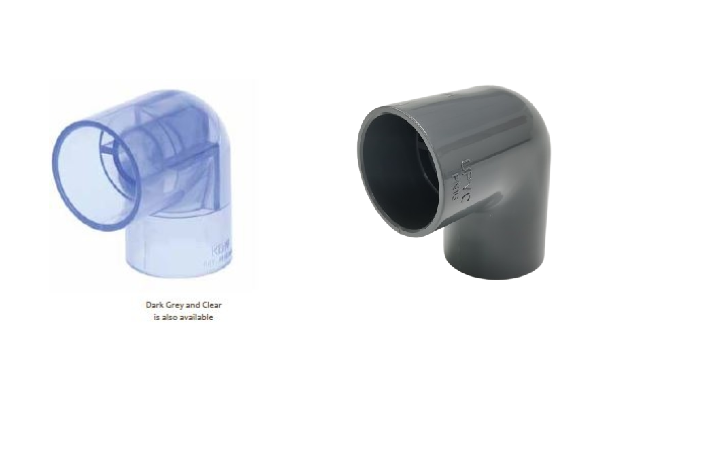

Double Containment 90 degree Elbow

Self Photos / Files - 009

Self Photos / Files - New Project - 2024-09-02T150255.669

Model     Grey/Clear

MaterIal:   PVC-U, Polyvinyl Chloride Unplasticised

Colour:    Grey or Clear - G/C

Dimension: see below

PN:        See below

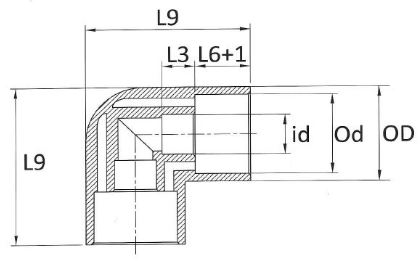

Technical Data

Code Inner / Outer Pipe PN

id

[mm]

Od

[mm]

OD

[mm]

L3

[mm]

L6

[mm]

L9

[mm]

DCE 020 040 048 - G/C 16 20 40 48 16 26 80
DCE 025 050 058 - G/C 16 25 50 58 19 32 96
DCE 032 063 073 - G/C 16 32 63 73 22 38 116
DCE 050 090 105 - G/C 16 50 90 105 38 51 172
DCE 063 110 128 - G/C 16 63 110 128 44 61 208
