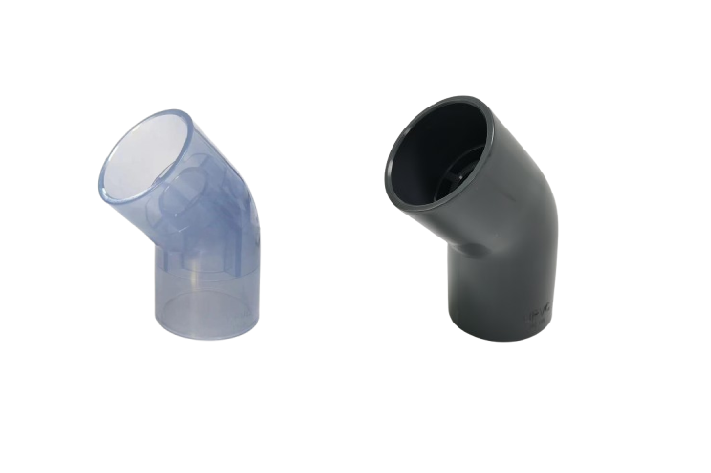

Model： Grey/Clear
MaterIal： PVC-U, Polyvinyl Chloride Unplasticised
Colour： Grey or Clear - G/C
Dimension： see below
PN： See below

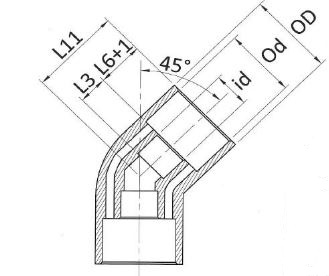

Technical Data
| Code | Inner / Outer Pipe PN |
id [mm] |
Od [mm] |
OD [mm] |
L3 [mm] |
L6 [mm] |
L11 [mm] |
| DE4 020 040 048 - G/C | 16 | 20 | 40 | 48 | 16 | 26 | 50 |
| DE4 025 050 058 - G/C | 16 | 25 | 50 | 58 | 19 | 32 | 59 |
| DE4 032 063 073 - G/C | 16 | 32 | 63 | 73 | 22 | 38 | 70 |
| DE4 050 090 105 - G/C | 16 | 50 | 90 | 105 | 38 | 51 | 103 |
| DE4 063 110 128 - G/C | 16 | 63 | 110 | 128 | 44 | 61 | 121 |
