Double Pipe to Single Pipe Union

Self Photos / Files - 6621

Self Photos / Files - New Project - 2024-09-02T145532.300

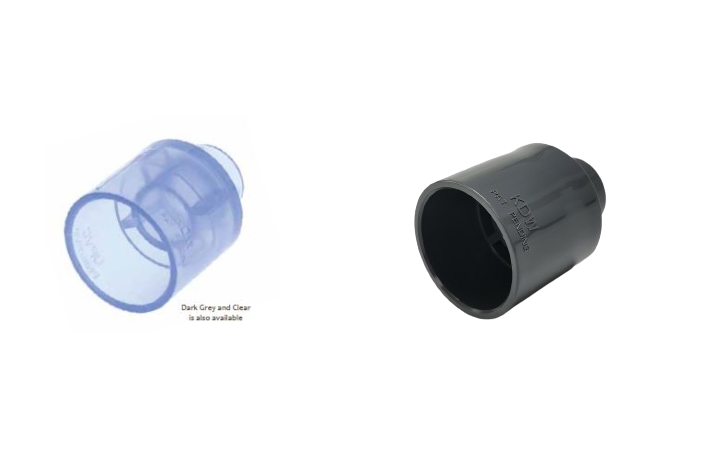

Model     Grey/Clear

MaterIal:   PVC-U, Polyvinyl Chloride Unplasticised

Colour:   Grey or Clear - G/C

Dimension: see below

PN:        See below

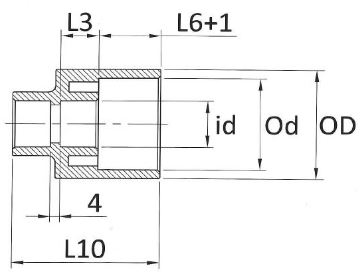

Technical Data

Code Inner / Outer Pipe PN

id

[mm]

Od

[mm]

OD

[mm]

L3

[mm]

L6

[mm]

L10

[mm]

DEC 020 040 048 - G/C 16 20 40 48 16 26 63
DEC 025 050 058 - G/C 16 25 50 58 19 32 75
DEC 032 063 073 - G/C 16 32 63 73 22 38 87
DEC 050 090 105 - G/C 16 50 90 105 38 51 132
DEC 063 110 128 - G/C 16 63 110 128 44 61 154
